Electro-DMFT-Multi-Function-Range-Timer

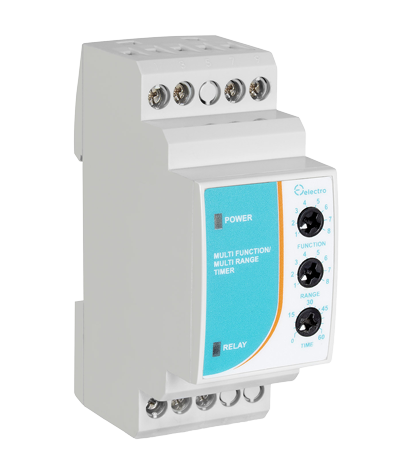

Multi-function multi-range Timer – DMFT

R595.84

Multi-function multi-range timer designed with the latest technology that includes all commonly used functions. DIN rail mountable for front and back panel positioning. Any change made to function or time range by means of front mounted dials will result in a reset of the unit



Features:



  • Microprocessor controlled
  • Failsafe feature
  • Front face adjustable time range and function settings
  • Front face adjustable time settings
  • Modular 35.5mm DIN rail mountable
  • 0.3 – 60 hrs Adjustable time ranges

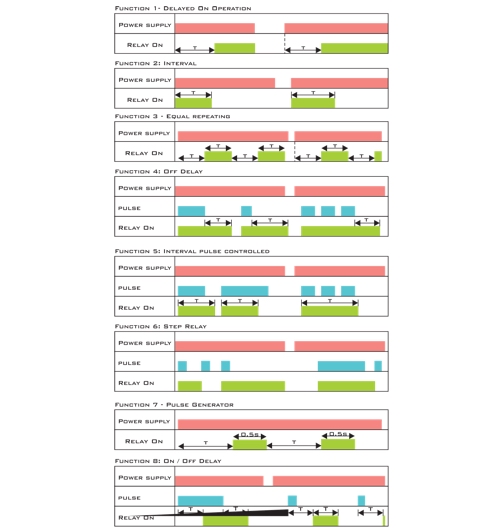

  • 8 Selectable functions
  • 10A SPDT output relay
  • LED indication for relay and power supply ON
Clear selection
Category:

Description

Time Specifications

Time Ranges
1) 0.3 – 6sec
2) 3 – 60sec
3) 0.3 – 6min
4) 3 – 60min
5) 0.3 – 6hours
6) 3 – 60hours
7) Relay ON
8) Relay OFF
Range Accuracy ≤ 0.5%
Scale Accuracy ± 5%
Repeat Accuracy ± 0.2%
Time Variation ≤ 0.05% / V
within rated power supply and ambient temperature ≤ 0.2% / °C
Reset Time 500 ms
Pulse Duration 500 ms (pins 7 & 9)

Output Specifications

Output Specifications SPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 2500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type 110, 230, 400V, 525V ± 10%
(Galvanic) 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 VA
Power Suppy DC Types 12, 24, 48 V ± 10%
(Non-galvanic)
Isolation None
Consumption ± 100mA

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED green
Output ON LED red
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc
