Phase Failure / Reversal Monitor – DPF

R480.26

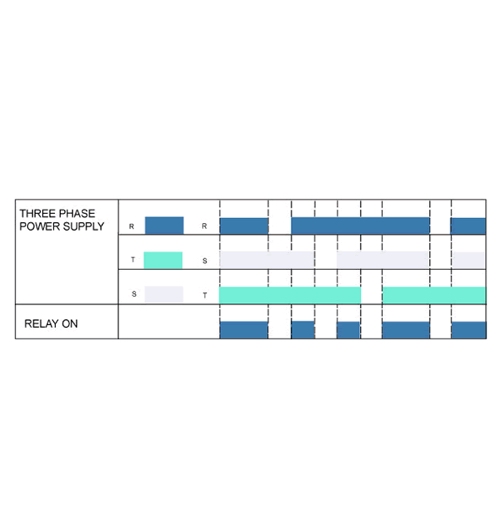

Phase Failure / Reversal Monitor for monitoring three phase supply voltage. The unit is ideal for protection against phase reversal, phase loss and phase imbalance.



Features:



  • High resolution analogue microprocessor
  • Monitors own supply
  • Detects phase reversal, loss and imbalance
  • Modular 35.5mm DIN rail mountable
  • 10A SPDT output relay
  • LED indication for relay ON
Clear selection
Category:

Description

Input Specifications

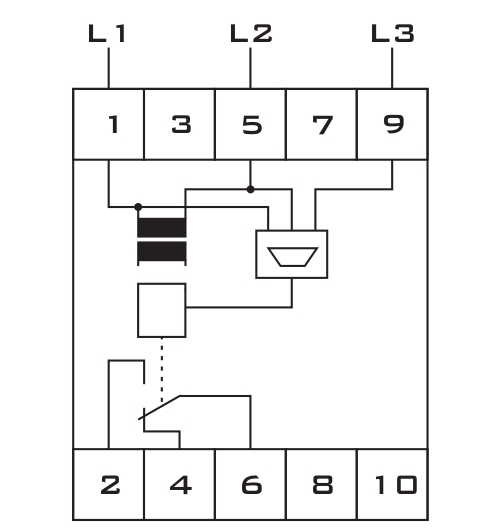

Input Pin 1, 5 & 9, L1, L2 & L3
Measuring Ranges (VAC)
Power Supply 400V
Range 8% NPS voltage
Voltage Interruption > 500ms
Dielectric Voltage None (supply/electronics)
Rated Impulse Withsyand 4 kV (50µs line/line)

Output Specifications

Output Specifications SPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 2500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type 110, 230, 400V, 525V ± 10%
(Galvanic) 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 VA

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Output ON LED red
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac
