PLUGIN-SC120

Signal Converters – SC120

R766.08

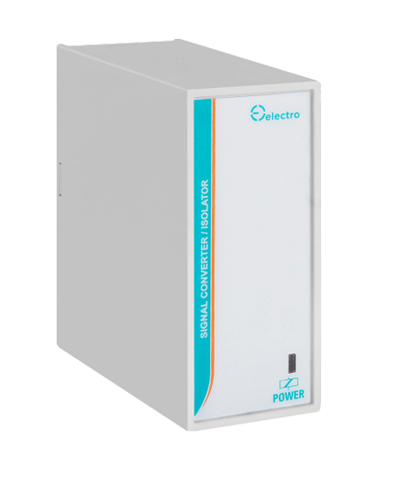

Compact signal converter with built-in 24VDC power supply for the output. The unit is designed for low amplitude signals where isolation is not needed (use SI100 for isolation). A variety of inputs and outputs are available to suit most applications.



Features:



  • High linearity
  • On-board PSU
  • Choice of Inputs and Outputs
  • Low cost
  • Versatile
  • Power supply ON LEDs
Clear selection
Category:

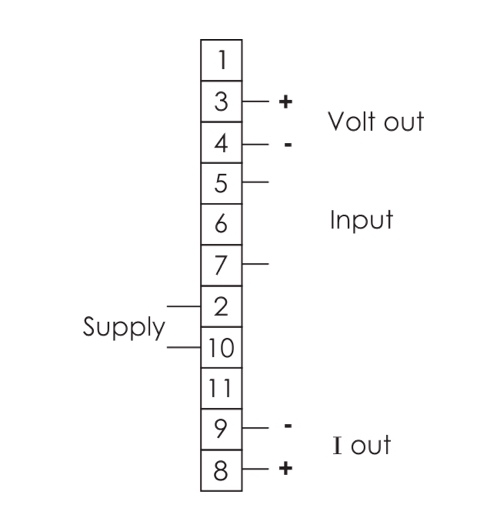

Description

Input Specifications

Input Signals 4-20mA,0-20mA,0-1A,0-5A
0-50mVdc,0-200mVdc,0-5Vdc,0-10Vdc
0-110Vac,0-230Vac,0-400Vac,0-600Vac
Input loading Input dependent

Output Specifications

Output Specifications 4-20mA
0-20mA
0-5VDC
0-10VDC
Tracking accuracy ±0.5%
Output Impedance 250ohm for 20mA/5V
500ohm for 20mA/10V
Output Drive Voltage 24VDC (30mA)
Tracking accuracy <0.5% FS

Supply Specifications

Power Suppy AC Type (Galvanic) 110, 230, 400V, 525V ± 10% 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 V

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED red
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Input/Monitoring

0-10VDC, 0-600Vac, 0-400Vac, 0-230, 0-110Vac, 0-200mV, 0-50mV, 0-1A, 0-5VDC, 0-5A, 4-20mA, 0-20mA
Output

0-20mA, 0-5VDC, 4-20mA, 0-10VDC, 1-5VDC
Supply Voltage

110Vac, 230Vac, 400Vac
