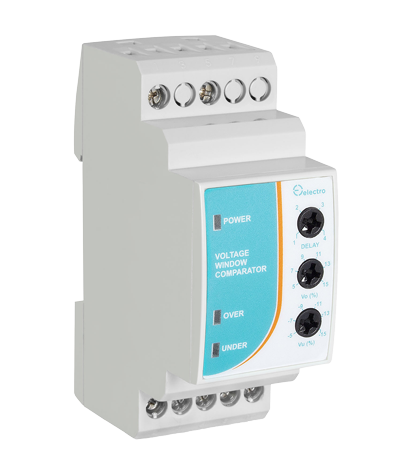

Voltage Window Comparator – DVW1

R605.70

Single Phase Voltage Window Comparator for monitoring supply voltage between two levels. The unit is ideal for all single phase voltage monitoring applications to protect valuable equipment. With the wide range of delays, the protection is extended to prevent immediate re-starts. Over and under voltage can be set via front panel dials. The latch facility prevents unmonitored fault conditions. Hysteresis is fixed at 5%.



Features:



  • High resolution analogue microprocessor
  • Front face adjustable over and under voltage levels
  • Monitors own supply
  • 4 Front face selectable delays
  • Optional latch facility
  • Modular 35.5mm DIN rail mountable
  • 10A SPDT output relay
  • LED indication for over and under voltage
  • LED indication for power supply ON
Clear selection
Category:

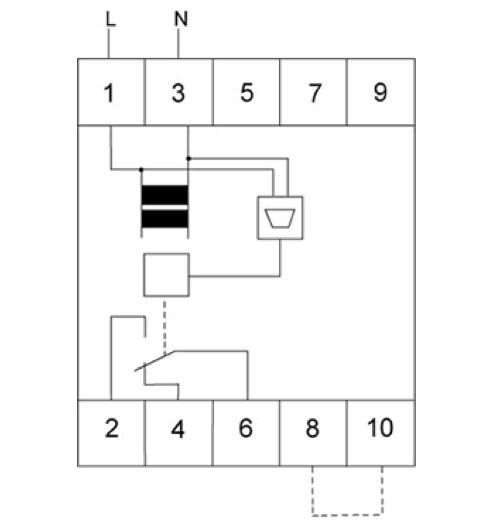

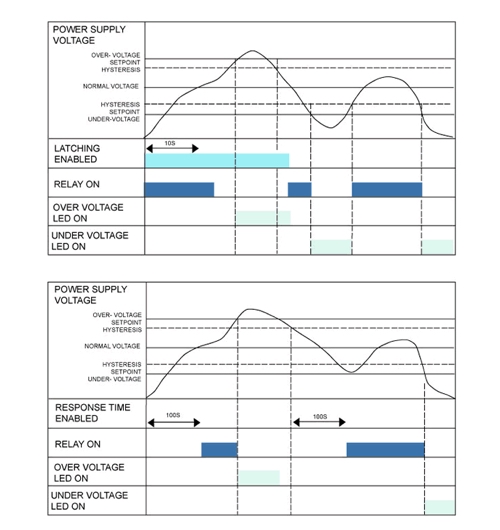

Description

Input Specifications

Input Pin 1, 5 L & N
Measuring Ranges (VAC)
Power Supply 230V
Upper Limit 184 – 276V
Lower Limit 241 – 276V
Scale ±5 – 15%
Voltage Interruption > 500ms
Dielectric Voltage None (supply/electronics)
Rated Impulse Withstand 4 kV (50µs line/line)

Output Specifications

Output Specifications SPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)

Supply Specifications

Power Suppy AC Type 110, 230, 400V, 525V ± 10%
(Galvanic) 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 VA

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED green
Over Voltage LED yellow
Under Voltage LED yellow
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac
