Electro-DDTC-Multifunction-Temperature-Controller

Temperature Controller Timer – DDTCT

R1,017.86

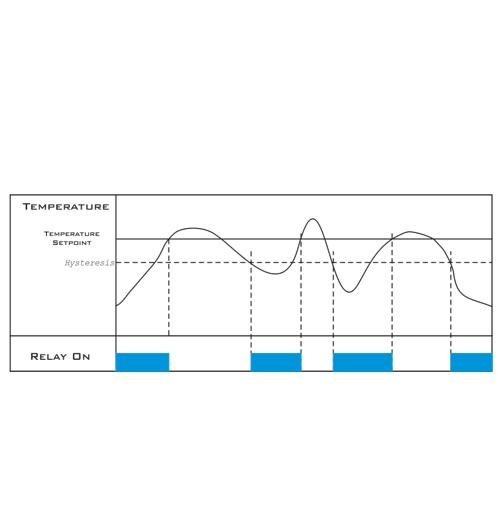

Four digit Temperature Controller with 24 Hour Timer designed with the latest microprocessor technology. Setup and set-points can be adjusted with an easy to access and control menu system to make all common function available. The controller interfaces with a highly accuracy digital temperature probe. The Heating relay output is controlled by the temperature setting. The Timer Relay is controlled by a 24 hour real-time clock which has battery backup.



Features:



  • Microprocessor controlled
  • Multi Function
  • High Accuracy 0.2 °C
  • Heating / Cooling Relay
  • 24 Hour Timer relay with battery backup
  • 2 x 10A SPDT output relay
  • Interface and power supply for digital temperature sensor
  • Modular 53.5mm Din rail mountable
  • Userfriendly menu system
Clear selection
Category:

Description

Time Specifications

Heating / Cooling
Relay Output SPDT
Time Relay Output SPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 2500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type 24, 48, 110, 230, 400V ± 10%
(Galvanic) 50 / 60 Hz ± 5%
Galvanic Isolation 4kV
Consumption ± 3VA
Power Suppy DC Types 24, 48 V ± 10%
(Non-galvanic)
Galvanic Isolation None
Consumption ± 200mA

General Specifications

Power ON Delay ≤ 300ms
Indication Two sets of 4 7-Segment Red LED’s
Current Temperature Top display
Set point / status Bottom display
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 250g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc
