Electro-GAM-3-Alarm-Unit

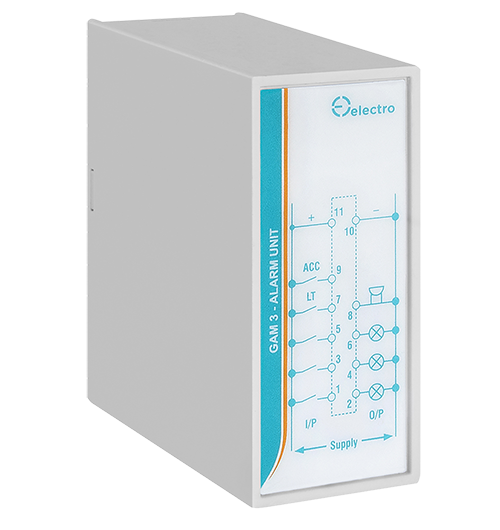

Alarm Module – GAM3

R562.69

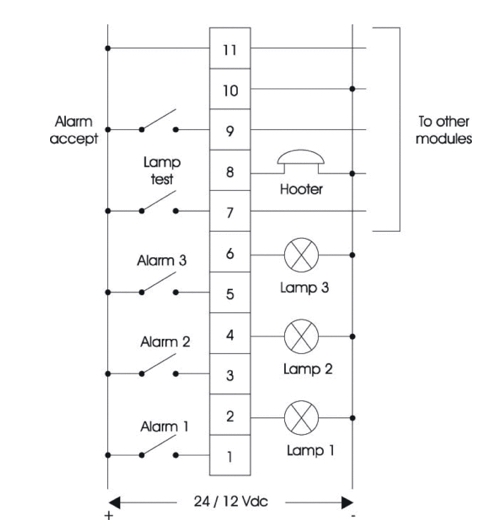

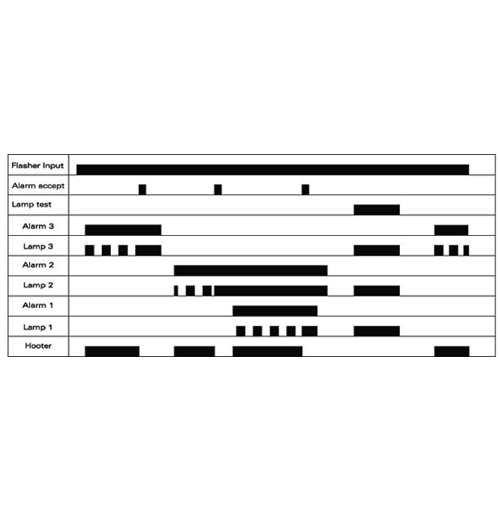

Alarm module to control alarm signals and generate the appropriate output for simple annunciator panels. The system can be expanded by bridging all common terminals of the modules. A flasher unit (R1F) isused to initiate the flashing alarm outputs before accepting them.



Features:



  • Three normally open alarm inputs
  • Three normally open alarm outputs
  • Common 1amp test facility
  • Alarm accept facility
  • Hooter output
  • Flasher input
  • Expandable
  • Output 10A SPDT
Clear selection
Category:

Description

Time Specifications

Alarm Inputs 3 N/O (Positive Common)
Alarm Accept N/O (Positive Common)
Lamp Test N/O (Positive Common)
Flasher 30 flashes per minute

Output Specifications

Alarm Outputs 3 N/O (Negative Common)
Hooter Outputs N/O (Negative Common)

Supply Specifications

Power Supply DC Type 12, 24± 10%
(Non-galvanic)
Isolation None
Consumption ± 100mA

General Specifications

Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

24Vac/dc, 12Vac/dc
