Electro-THC1-Two-Hand-Control-Relay

Two Hand Control Module – THC1

R480.26

The unit is designed for machines where the operator has to push two buttons to activate the machine itself (two hand control). A latch facility is incorporated to use with a foot switch.



Features:



  • Two normal open inputs for two hand control
  • Latch input for foot control
  • Fixed time to activate both hand control
  • Power supply ON and Relay ON LEDs
  • Output 10A SPDT
Clear selection
Category:

Description

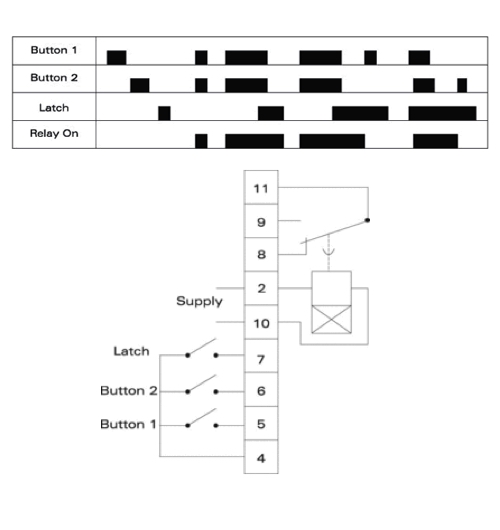

Mode of Operations



Both buttons (NO contacts) must be pushed within a fixed time (0.5s) to activate the output relay.



If one is released. the relay de-energizes instantaneously. To activate the relay is necessary to release also the other button and then push both contemporary. When both buttons are pushed.



The output relay can be latched by closing an external contact (terminals 4-7). In this case the output relay de-energizes only by opening the latch or pushing one of the buttons. If both buttons are closed when the unit is powered up. the relay energizes instantaneously.



Example:

Two hand control for safety reasons

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc
