Electro-TP1-One-Shot

One Shot Timer – T1P

R431.87

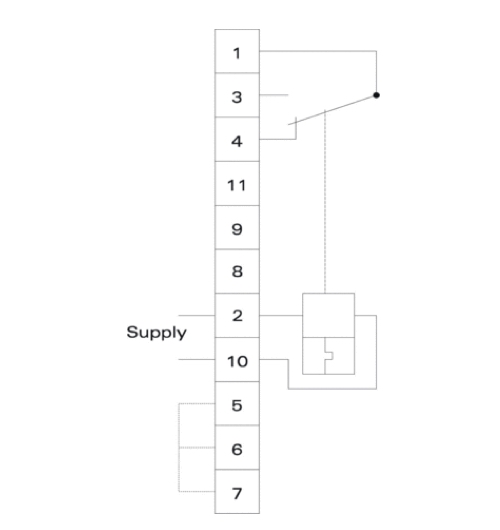

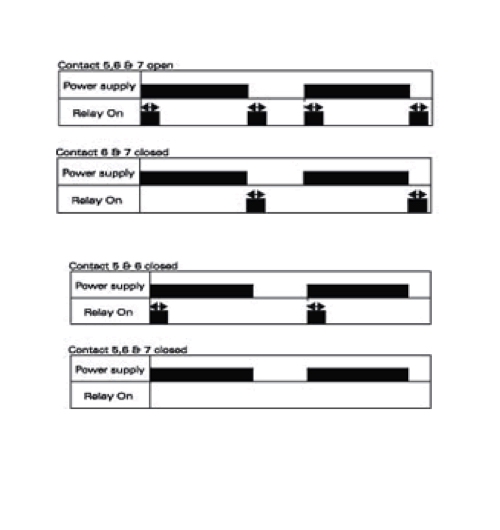

Single function on-adjustable timer to initiate a 0.5 sec pulse on energization and/or de-energization. By bridging contacts 5 & 6 the relay will only pulse on application of the supply and by bridging out contract 6 & 7 the relay will only pulse when the supply is removed. The supply has to remain on for at least 3 seconds for the pulse on removing of power to function correctly. A 1 second pulse can be supplied on demand.



Features:



  • Selectable pulse on energization and/or de-energization
  • Non-adjustable pulse length of 0.5seconds (1sec on demand)
  • LED indication for power supply ON
  • Output 10A SPDT
Clear selection
Category:

Description

Time Specifications

Time Ranges 0.5 sec pulse
Range Accuracy ≤ 0.5%
Repeat Accuracy ± 0.2%
Time Variation ≤ 0.05% / V
within rated power supply and ambient temperature ≤ 0.2% / °C
Reset Time 1 sec

Output Specifications

Output Specifications DPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type (Galvanic) 110, 230, 400V, 525V ± 10% 50 / 60 Hz ± 5Hz
Isolation None
Consumption ± 3VA
±6 VA 525 V
Power Suppy DC Type (Non-galvanic) 12, 24, 48 V ± 10%
Isolation None
Consumption ± 100 mA

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED red
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc
