Electro-XP404-Digital-Counter

Pre Select Counter – XP404

R770.56

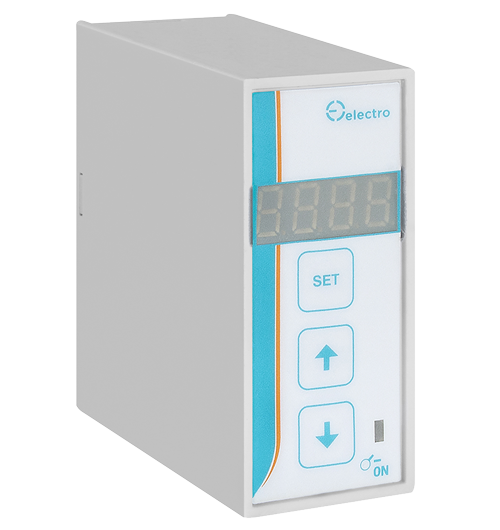

The XP404 is a fully programmable microprocessor controlled four digit counter / timer. The set value can be entered via the front membrane switch and the function, range, relay action and UP or DOWN count / time is set with an extended menu. The unit also incorporates a supply for a NPN proximity switch which can be used to pulse the counter.



Features:



  • Microprocessor based design
  • Counter/Timer function with up/down option
  • Relay On or pulse (variable) on reaching count/time
  • Front mounted membrane switch to select count
  • User friendly menu for all functions and settings
  • 4 Seven segment displays (max. Count 9999)
  • Power supply for 3 wire NPN proximity switch
  • Permanent memory for selected count
  • Reset facility incorporated
  • Output 10A SPDT relay
Clear selection
Category:

Description

Time Specifications

Time Ranges (1) 0-999.9 sec
(2) 0-9999 sec
(3) 0-999.9 min
(4) 0-9999 min
(5) 0-999.9 hrs
(6) 0-9999 hrs

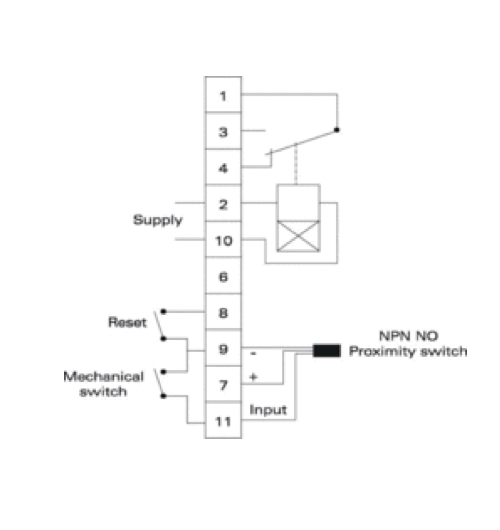

Input Specifications

Probe Type NPN 3 wire proximity switch
Pin 7 + supply
Pin 8 – supply
Pin 11 Probe input
Probe Voltage 24 VDC
Short Circuit Current 25mA max
Response Time 0.1 sec
Reset Time 1 sec
Rest Input Pin 8 & 9

Output Specifications

Output Specifications SPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type (Galvanic) 110, 230, 400V, 525V ± 10% 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 V
Power Suppy DC Type (Non-galvanic) 12, 24, 48V ± 10%
Isolation None
Consumption ± 3VA
± 100 mA

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Counter display 4 * 7 segment red
Output ON LED yellow
Environment
Degree Of protection I IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc
