PLUGIN-V1C

Voltage Monitor – V1C

R476.67

The V1C is a precise UNDER / OVER voltage monitoring relay. The unit can be ordered in many AC / DC voltage ranges, making it ideal for many voltage monitoring applications.



The set point and hysteresis can be adjusted with separate potentiometers.



The unit also incorporates a latch facility to prevent undetected failures.



Features:



  • Monitoring relay for voltage control
  • Measures separate voltage input
  • Rear DIPswitch selection of UNDER / OVER voltage
  • Rear DIPswitch selection for 10sec start-up delay
  • Potentiometer adjustable voltage limits
  • Potentiometer adjustable hysteresis limits
  • Power supply ON and Relay ON LEOs
  • Latch facility incorporated
  • Output 10A SPDT relay
Clear selection
Category:

Description

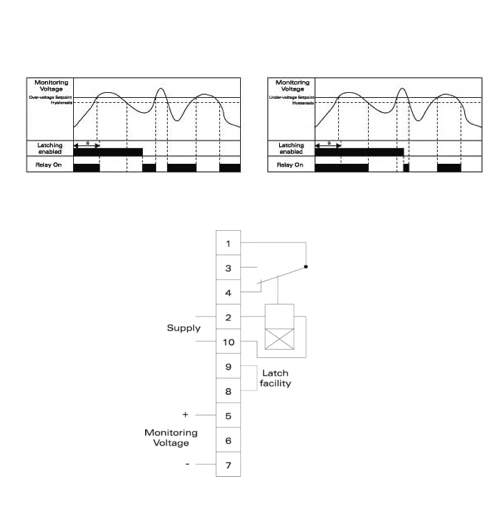

Function 1: Over Voltage



The relay will de-energize if the voltage exceeds the set limit. If the voltage reduces by the percentage hysteresis of the set value the relay will energize.



Example: Protection for over voltage of equipment.



Function 2: Under Voltage



The relay will de-energize if the voltage drops below the set limit. If the voltage Increases by the percentage hysteresis of the set value the relay will energize.



Example: Protection for over voltage of equipment.



Input Specifications



Input Signals Pin 5 & 7
Standard Measuring Ranges 4, 40, 400VAC/DC
Internal Impedance 500kΩ
Measuring Accuracy 1%
Maximum Over Voltage + 50%
Hysteresis 5 – 50%
Repeat Accuracy < 1%
Response Time 1 sec
Start-up Delay 10 sec
Latch Input Pin 8 & 9

Output Specifications:



Output Specifications SPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications:



Power Suppy AC Type (Galvanic) 110, 230, 400V, 525V ± 10% 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 V
Power Suppy DC Type (Non-galvanic) 12, 24, 48V ± 10%
Isolation None
Consumption ± 100 mA

General Specifications:



Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED red
Output ON LED green
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Input/Monitoring

0-10VDC, 0-400Vac, 0-230Vac, 0-110Vac, 0-5VDC
Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc
