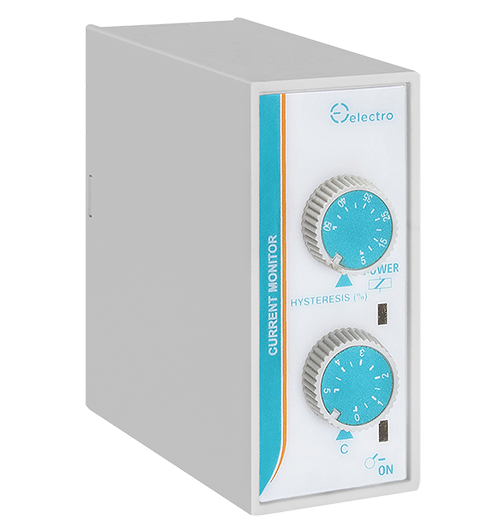

Pivot Monitoring Relay – LA5/P

R532.22

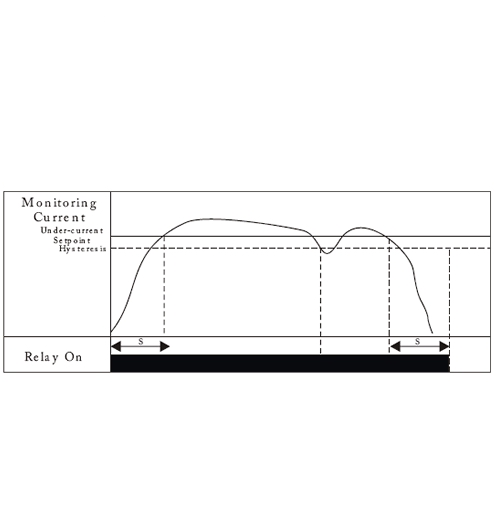

The LA5/P is a precise UNDER current monitoring relay. The unit is specifically designed to monitor the motors on pivot irrigation. The trip point and response delay can be adjusted with seperate potentiometer. The unit also incorporates a latch facility to prevent undetected failures and can be reset by the front mounted push button.



Features:



  • Monitoring relay for pivot shutdown
  • Measures separate current input
  • Potentiometer adjustable current limits
  • Potentiometer adjustable response delay
  • Power supply ON LED and Relay ON LEDs
  • Latch facility incorporated with front mounted reset button
  • Output 10A SPDT relay
Clear selection
Category:

Description

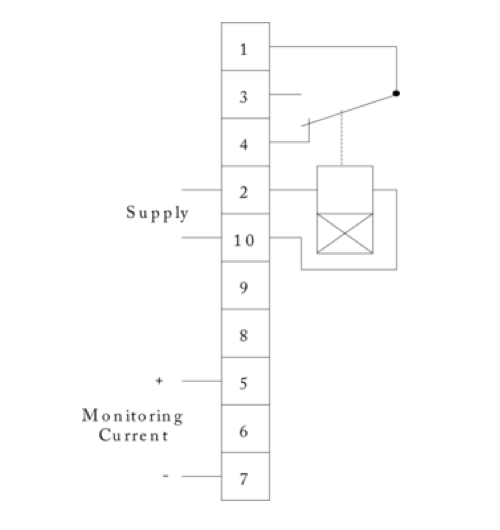

Input Specifications

Input Pin 5 & 7
Measuring Ranges (5A) 1 – 5 A
Internal Resistance 0.1Ω
Maximum Overload Current 10 A (30 sec)
Hysteresis 5 %
Repeat Accuracy 1%
Response Time 0.5 – 10min
Start-up Delay 10 sec

Output Specifications

Output Specifications SPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 5A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type (Galvanic) 110, 230, 400V, 525V ± 10% 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 V
Power Suppy DC Type (Non-galvanic) 12, 24, 48 V ± 10%
Isolation None
Consumption ± 100 mA

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED red
Output ON LED red
Environment
Degree Of protection IP 20
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc
