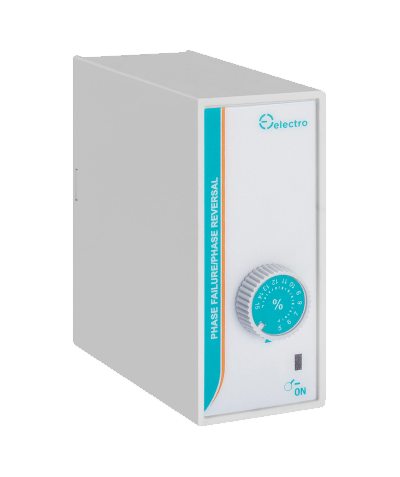

SF1_K Sequence Monitor with Adjustment

R422.02

The SF1 Monitors negative phase sequence (NPS) voltage to detect phase failure, phase reversal and phase imbalance. The NPS voltage of the unit can be djusted from 7-15%. When any of these faults occur the unit will de-energize. The relay will only re-energize if the supply voltage corrects itself. The unit will not react to a balanced voltage variation



Features:



  • Monitoring relay for 3-phase voltage control
  • Measures if all 3 phases present and in sequence
  • Detection of phase asymmetry
  • Insusceptible to balanced supply voltage variation
  • Insensitiveto regenerated EMF
  • Fastresponse to reverse phase sequence
  • Relay ON LED
  • Output 10A SPDT
Clear selection
Category:

Description

Input Specifications

Input

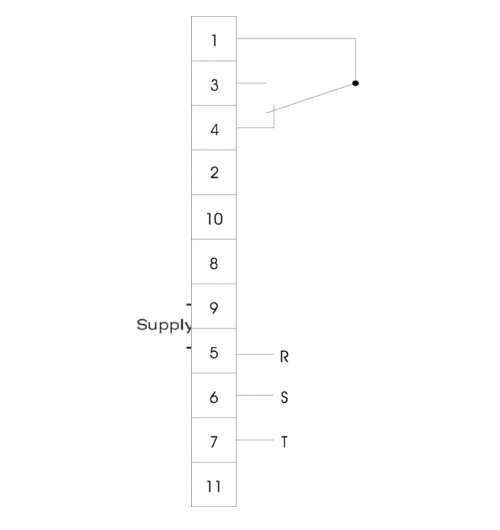

Pin 5 Phase L1
Pin 6 Phase L2
Pin 7 Phase L3
Voltage interruption < 40ms
Dielectric Voltage None (supply / electronics)
Rated Impulse withstand 4kV (1.2/50ms line/line)

Output Specifications

Output Specifications SPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type (Galvanic) 1110, 230, 400V, 525V ± 10% 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
± 6VA 525VA

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Output ON LED green
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac
