Thermistor-Relay

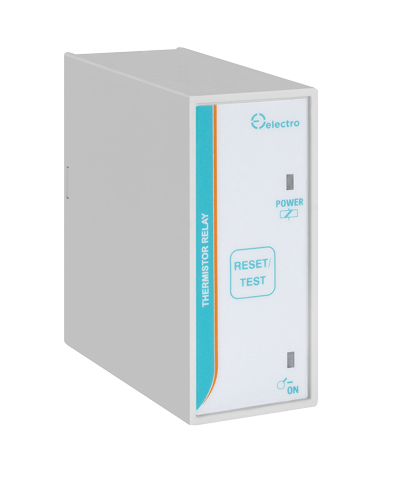

Thermistor Motor Protection Relay

R458.75

Thermistor motor protection unit which interfaces directly to a PTC sensor to provide protection of motors, alternators, transformers, etc. The unit will trip if the nominal trip temperature for the sensor is exceeded.



The fault latching facility is incorporated which can be reset via the front panel membrane switch or opening contacts 7 & 8. A test facility to simulate fault conditions is also incorporated on the front panel membrane switch.



The ON and OFF times can be adjusted independently.



Features:



  • Fail-safe control feature
  • Direct connection to PTC sensor
  • Connect up to six thermistors
  • Latching facility
  • Test/reset button to simulate fault condition and reset latch
  • Cable or sensor fault detection
  • Power supply ON and Relay ON LEDs
  • Output 10A SPDT
Clear selection
Category:

Description

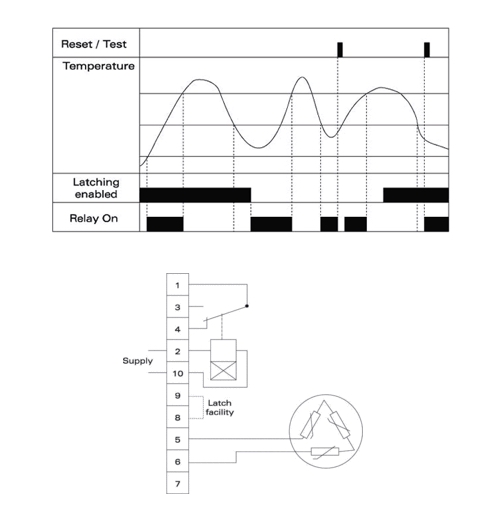

Mode of Operations:



Under normal conditions the relay is energized. If one of the thermistors reaches nominal trip temperature the relay will de-energize. If the latch is connected between 8 & 9 the relay will only re-energize if the latch is opened or the front panel membranes which is pressed and the temperature fall sat least 5% below trip value.Under normal running conditions the front panel membranes can be pressed to imitate a trip condition. The relay will de-energize and re-energize after a set time period.



EXAMPLE :



A thermistor imbedded in the windings of a motor will reach the trip temperature to protect the motor from over heating.



Sensor Specifications:



Sensor Type PTC
Input Impedance 2200Ω
Short Circuit Current 1mA
Open Circuit Voltage > 2.5mV
Response Time 0.05sec
Max Cold Resistance of PTC Sensor
Trip Threshold 3100Ω
Recovery Threshold 1600Ω
Short-circuit Detection <20ω
Repetitive Accuracy 0.5%

Output Specifications:



Output Specifications SPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications:



Power Suppy AC Type (Galvanic) 110, 230, 400V, 525V ± 10% 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 V
Power Suppy DC Type (Non-galvanic) 12, 24, 48V ± 10%
Isolation None
Consumption ± 100mA

General Specifications:



Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED red
Output ON LED green
Cable fault Power LED (flashing)
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc
