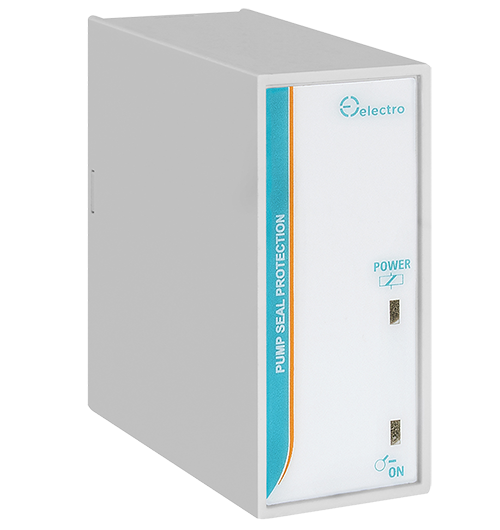

Pump Seal Protection – PSP1

R424.70

Microprocessor based monitoring relay to measure moisture in a submersible pump. Due to the advanced design of the unit a high accuracy and safety is achieved. Response delay are incorporated to prevent nuisance tripping. The unit energises on application of supply. If the current through the probes is more than 20uA or the resistance is smaller than 10 Mohm, the relay will de-energise after 10 sec. The relay will energise if the current is less than 15uA and the resistance is more than 1.4Mohm.



Features:



  • Microprocessor based design
  • High accuracy analogue converter
  • Repeatable deviation: <0.2%
  • Power supply ON and Relay ON LEDs
  • Output 5A DPDT
Clear selection
Category:

Description

Output Specifications

Output Specifications DPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type (Galvanic) 110, 230, 400V, 525V ± 10% 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 V
Power Suppy DC Type (Non-galvanic) 12, 24, 48V ± 10%
Isolation None
Consumption ± 100mA
Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED red
Output ON LED green
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc
