R523.26
Forward reverse timer controls two circuits which are activated separately and are switched after a adjustable pause time.

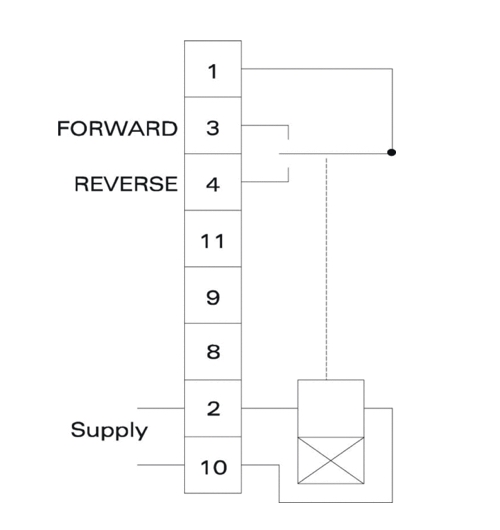

When power is applied to the unit contacts 1 & 4 close for the preset ON time range. After the ON time has expired an adjustable OFF time is activated where both contacts 1.3 & 4 are open. After this contacts 1 & 3 are closed for the adjustable ON time and the cycle continues with the adjustable OFF time.
| Supply Voltage | 525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc |
|---|
