Description
Mode of Operations
When applying the supply the relay is energized and remains so until the set time is elapsed. The relay will then de-energize until the supply is removed and re-applied.
Back to 11 Pin Plug In Units

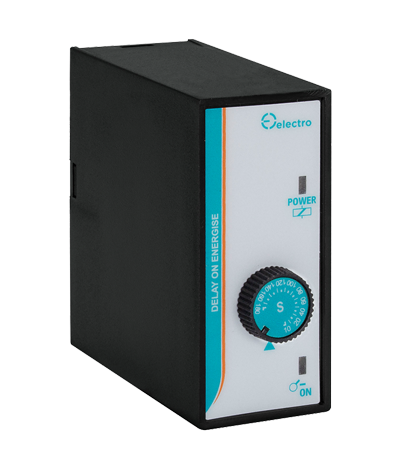

Interval Timer – T1I
R310.02
The T10 is an economical single function, single time range timer.
Features:
- Single function / single time range / single voltage
- Potentiometer adjustable time setting
- Repeatable deviation: < 1%
- Power supply ON and Relay ON LEDs
- Output 10A SPDT
Additional information
| Time Range | 360 Second, 180 Second, 60 Second, 30 Second, 10 Second, 6 Second, 6 Second, 1 Second |
|---|---|
| Supply Voltage | 525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc |
