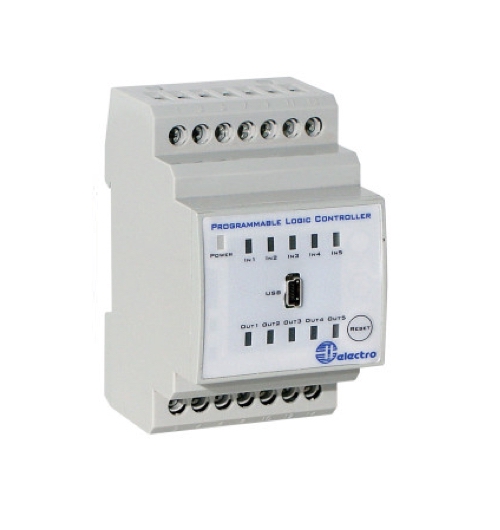

Programmable Logic Controller – DPLC

R1,426.43

Logic Controller with five opto-isolated input with common ground on in 14. Inputs can be activated by 10-30Vdc. The Controller has five relay output with common on pin 12. The unit is supplied with Electroplc software to generate ladder logic diagrams and program the DPLC. Programming is accomplished via USB.



Features:



  • Microprocessor controlled
  • 5 Opto Isolated Inputs
  • 5 Input LED’s
  • 5 * 8A Relay Outputs
  • 5 Output LED’s
  • Ladder logic Sotware
  • USB programmable
  • Modular 53.5mm Din rail Mountable
Clear selection
Category:

Description

Input Specifications

Input Type 5* Optically Isolated
Input Range 10-30Vdc
Refresh Rate <500ms

Output Specifications

Relay Output 5* SPST
Rated Isolation Voltage 1000Vac (contact / electric)
6000Vac (contact / contact)
Nominal Rate in Ac1 2500VA
Rated Current 8A
Rated Voltage 250A
Mechanical Life 10*106 cycles
Electrical Life 10*103 cycles (at max load)
Operating Frequency ≤1800 cycles/h

Controller Specifications

Instructions
TURN-ON DELAY
TURN-OFF DELAY
RETENTIVE TIMER
RESET
ONE-SHOT RISING / FALLING
MOVE
ARITHMETIC OPERATIONS
COMPARE
COUNTER /CIRCULAR COUNTER
SHIFT REGISTER
LOOK-UP TABLE
PIECEWISE LINEAR TABLE

Supply Specifications

Power Supply AC Type 24, 48, 110, 230, 400 ±10%
Galvanic Isolation 4kV
Consumption ±3VA
Power Supply DC Type 12, 24, 48 ±10%
Galvanic Isolation None
Consumption ± 200 mA

General Specifications

Power ON Delay 300 ms
Indication
Power ON LED
5 * Input LED
5* Output LED
Environment
Degree Of Protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 250g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 24Vac/dc, 12Vac/dc
