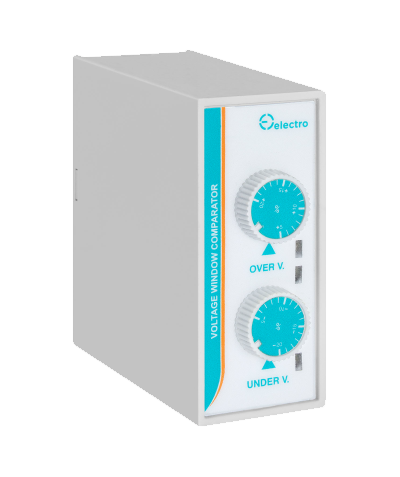

Under Voltage Monitor – V3E/N

R529.54

Phase + Neutral monitoring plug-in relay for separate upper and lower voltage control as well as phase failure / sequence. Often used where the generated electrical power is unstable (or incorrect) in order to secure the equipment.



Features:



  • Monitoring relay and 3 phase measuring relay for upper / lower phase to phase voltage control
  • Measures if all 3 phase to phase voltages are within set limits, present and in sequence
  • Measures on own power supply
  • Upper and lower limits separately adjustable
  • LED indication for over / under volts
  • Latch facility incorporated
  • 10 second start-up delay
  • 180 second response delay
  • Output 10A SPDT
Clear selection
Category:

Description

Input Specifications

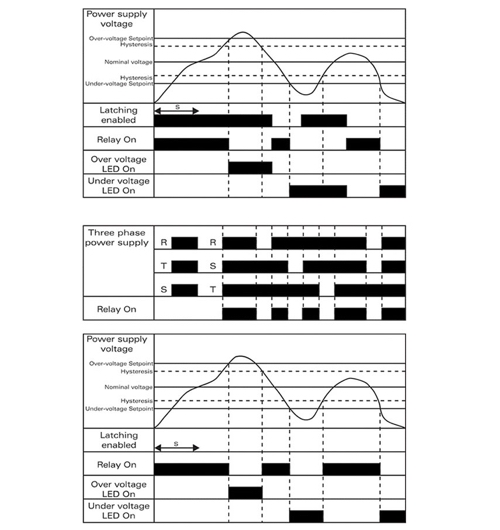

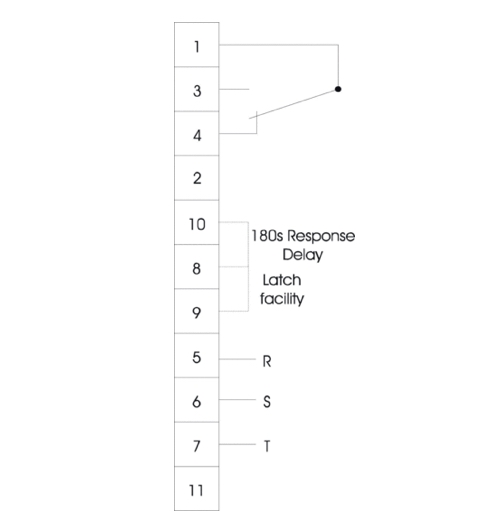

Pin 5 Phase L1
Pin 6 Phase L2
Pin 7 Phase L3
Pin 11 Neutral
Power Supply (phase neutral) 230V
Range 184 – 276V
Upper Limit 241.5 – 276V
Lower Limit 281.5 – 184V
Scale ±5 – 20%
Voltage Interruption < 40ms
Dielectric Voltage None (supply/electronics)
Related Impulse Withstand 4kV (1.2/50 μs line/line)

Output Specifications

Output Specifications SPDT
Rated Isolation Voltage 6000 VAC
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type 1110, 230, 400V, 525V ± 10%
(Galvanic) 50 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA ±6 VA 525 VA

General Specifications

Power ON Delay ≤300 ms
Power OFF Delay ≤200 ms
Indication for
Power Supply ON LED red
Over Voltage LED yellow
Under Voltage LED yellow
Environment
Degree Of Protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -10 to + 50°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac
