Electro-T2D-Delay-on-Ralease

Delay On Release – T2D

R567.17

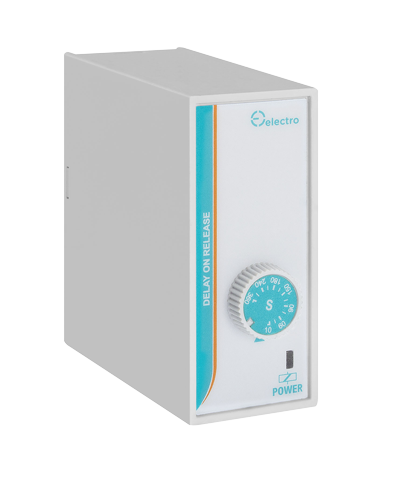

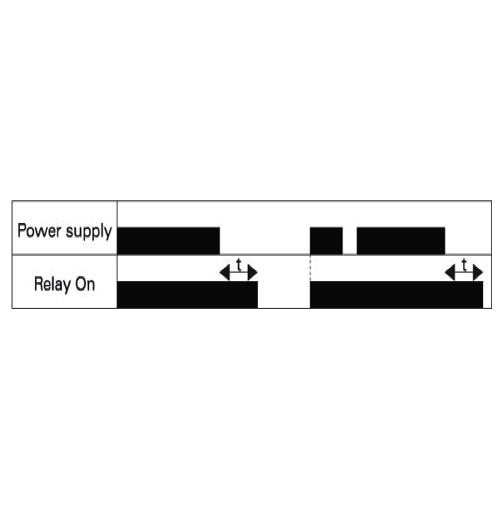

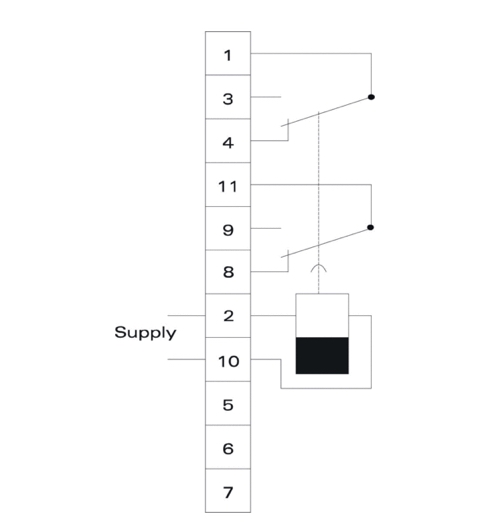

The unit provides delayed release of relay after the supply has been removed. Time ranges from 10- 180min are supplied with internal battery which has to be charged for 24 hours before it is first used. Power must be supplied for 30% of time range before removed to charge internal retaining circuit.
In applications where supply voltage is present the pulse controlled interval timer (T2M or T1I/P) should be used.



Features:



  • Time range 3 – 360sec without battery
  • Time range 10- 180minwith battery
  • Potentiometer adjustable time setting
  • Oscillator control time circuit
  • Repeatable deviation: < 1%
  • LED indication for power supply ON
  • Output 5A DPDT
Clear selection
Category:

Description

Time Specifications

Time Ranges
Without battery 3, 10, 30, 60, 180, 360 sec
With battery 10, 30, 60, 180 min
Range Accuracy ≤ 0.5%
Scale Accuracy ± 5%
Repeat Accuracy ± 1%
Time Variation ≤ 0.05% / V
within rated power supply and ambient temperature ≤ 0.2% / °C
Reset Time 500 ms

Output Specifications

Output Specifications DPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 5A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type 110, 230, 400V, 525V ± 10%
(Galvanic) 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 VA
Power Suppy DC Types 12, 24, 48 V ± 10%
(Non-galvanic)
Isolation None
Consumption ± 100mA

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED red
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Time Range

360 Second, 180 Second, 60 Second, 30 Second, 10 Second, 6 Second, 6 Second, 1 Second
Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc

Reviews

There are no reviews yet.

Be the first to review “Delay On Release – T2D”
