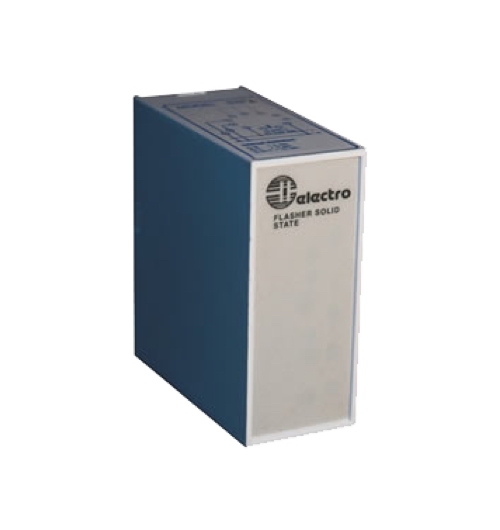

Solid State Flasher – SSF1

R547.46

The solid state flasher is designed to eliminate mechanical wear and tear and arcing when switching incandescent lamps continuously. The unit also has selectable interval timing forwarning signals.



Features:



  • Microprocessor based design
  • 90 Flashes per second
  • Triac output SA 1000W/250V
  • Selectable Internal timing
  • Two complementary output
  • 95 – 230V AC supply
Clear selection
Category:

Description

Input Specifications:

Time Ranges 90 pulses per second
Range Accuracy < 1%
Repeat Accuracy ± 0.2%
Time Variation ≤ 0.5% / V
within rated power supply and ambient temperature ≤ 0.5% / °C
Reset Time 800 ms

Output Specifications

Output Specifications 90 pulses per second
Rated Isolation Voltage < 1%
Rated Current ± 0.2%
Rated Voltage < 0.5% / V
Mechanical Life < 0.5% / °C
Electrical Life —
Operation Frequency 800ms

Supply Specifications:

Power Suppy AC Type
(Galvanic)		 110, 230, 400V ±
10% 50 / 60 Hz ± 5Hz
Isolation None
Consumption ±2VA

General Specifications:

Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

230Vac, 1100Vac
