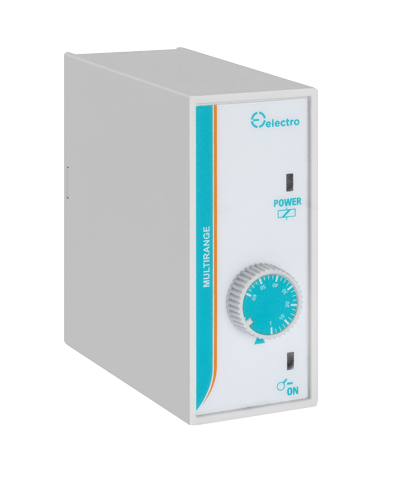

Electro-T2M-Multrange

Multi Range Timer – T2M

R494.59

Microprocessor based multi-function timer with four selectable modes of operation and time range from 0.3 sec – 60 hrs. Extensive applications due to combinations of functions and time ranges. Due to the advanced design of the unit a high accuracy can be achieved. All commonly used functions are incorporated in the unit. Any adjustment on the front potentiometer after the supply is applied is not acknowledged. This prevents unwanted changes of the time range. The instantaneous contact in the unit can be used in a hold-incircuitor where an out put is needed immediately when the supply is applied. For a unit without an instantaneous contact the T2M can be used.



Features:



  • Microprocessor based design
  • Time range 0.3 sec – 60hrs
  • Rear DIP switch selection of 4 function
  • Rear DIP switch selection of 8 timer ranges
  • Potentiometer adjustable time setting
  • Repeatable deviation: <0.2%
  • Power supply ON and Relay ON LEDs
  • Output SADPDT
Clear selection
Category:

Description

Time Specifications

Time Ranges
Pins 5 & 6 open 0.3-6sec
3-60sec
0.3-6min
3-60min
Pins 5 & 6 closed 0.3-6min
3-60min
0.3-6hrs
3-60hrs
Range Accuracy ≤ 0.5%
Scale Accuracy ± 5%
Repeat Accuracy ± 0.2%
Time Variation ≤ 0.05% / V
within rated power supply and ambient temperature ≤ 0.2% / °C
Reset Time 500 ms
Pulse Duration 500 ms

Output Specifications

Output Specifications DPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 5A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type (Galvanic) 110, 230, 400V, 525V ± 10% 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 V
Power Suppy DC Type (Non-galvanic) 12, 24, 48 V ± 10%
Isolation None
Consumption ± 100 mA

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED red
Output ON LED green
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc

Reviews

There are no reviews yet.

Be the first to review “Multi Range Timer – T2M”
