Electro-LP3-Pump-protection-relay

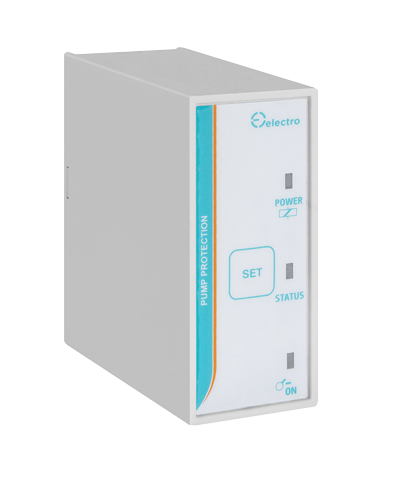

Pump Protection Relay – LP3

R628.10

Microprocessor based pump protection relay capable of protecting a submersible pump against all major power line faults. The unit calibrates itself under normal running conditions and stores these parameters in non-volatile memory. The unit also in corporate a reset delay for under current situations to enable the borehole to replenish itself. Inan over current situation the unit will retry three times to prevent permanent tripping with temporary blockages.



Features:



  • Microprocessor based protection relay
  • Over / Under Current Protection
  • Over / Under Voltage Protection
  • Phase Failure / Phase Reversal Protection
  • Selectable Under Current Reset Delay
  • Three retries for Over Current
  • Automatic Self Diagnosis of Pump
  • LED indication for all faults
Clear selection
Category:

Description

Input Specifications

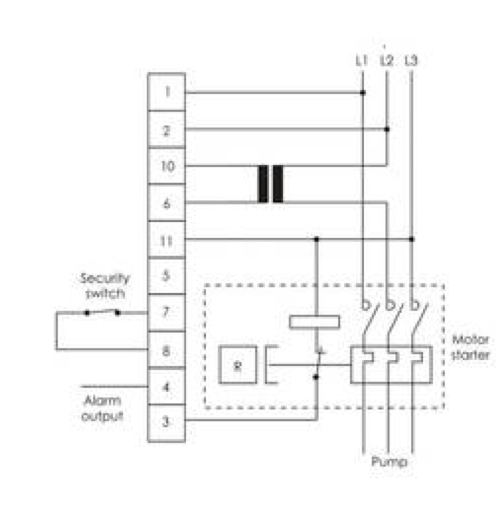

Current Input Pin 6 & 10
Measuring Ranges 1 – 5A
Recovery Time 15 sec
(3 attempts then permanent OFF)
Under Current Limit 8% (12% extended)
Recovery Time 1, 2, 4, 8hrs
Maximum Overload Current 10A (30 sec)
Voltage Input Pin 1, 2 & 11
Measuring Range 320 – 460VAC
Over / Under Voltage Limit ± 15% (20% extended)
Hysteresis 5%

Output Specifications

Output Specifications SPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type (Galvanic) 110, 230, 400V, 525V ±
10% 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 V

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms

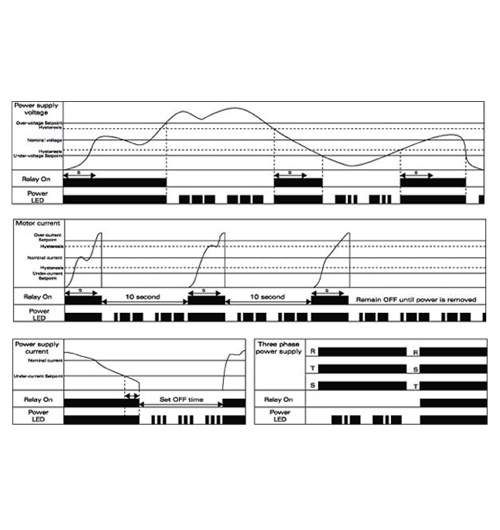

Indication for
Relay ON LED green
Power ON LED red
Over Voltage — — —
Under Voltage — ● ●
Over Current ● — —
Under Current ● ● ●
Security switch open ● — ●
Phase Reversal — ● —
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac
