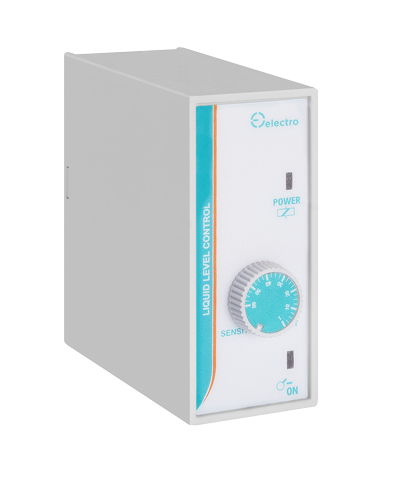

Liquid Level Controller – LV1

R430.08

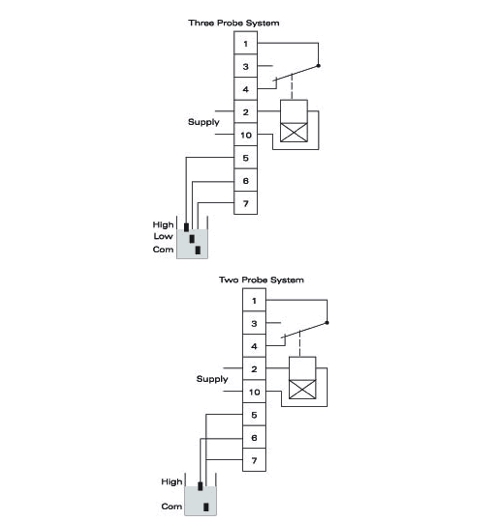

Level control unit of conductive liquids which can be configured for FILLING or EMPTYING. The unit can be used as a two probe system for alarm purposes or a three probe system to control HIGH and LOW levels of a reservoir. Up to four LV1 can be utilized in the same reservoir by connecting all commons (pin7). The sensitivity of the unit can also be adjusted.



Features:



  • Fail-safe control feature

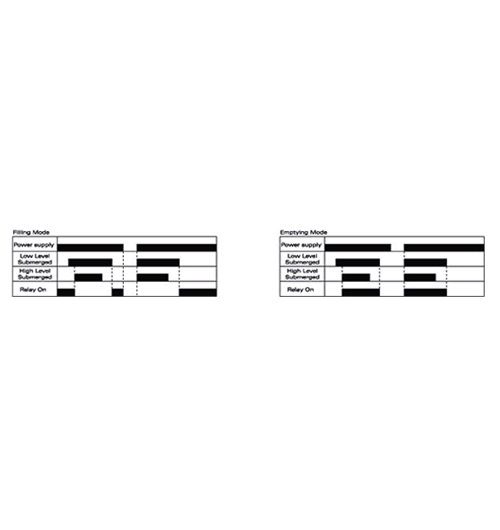

  • Rear DIP switch selectable FILLING/EMPTYING
  • Adjustable sensitivity
  • Modulated AC probe signal to prevent electrolytic corrosion
  • Low voltage probe signal
  • Power supply ON and Relay ON LEDs
  • Output 10 A SPOT
Clear selection
Category:

Description

Time Specifications

Probe Voltage 4 VAC
probe Current 2.5mA
Probe Frequency 100Hz
Sensitivity 4 – 50kΩ
Response Time 1 sec
Max. Probe Cable Length (2.5 twin and earth screened) 400 mm

Output Specifications

Output Specifications SPDT
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type (Galvanic) 110, 230, 400V, 525V ± 10% 50 / 60 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 V
Power Suppy DC Type (Non-galvanic) 12, 24, 48 V ± 10%
Isolation None
Consumption ± 100 mA

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED red
Output ON LED green
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc
