R529.54

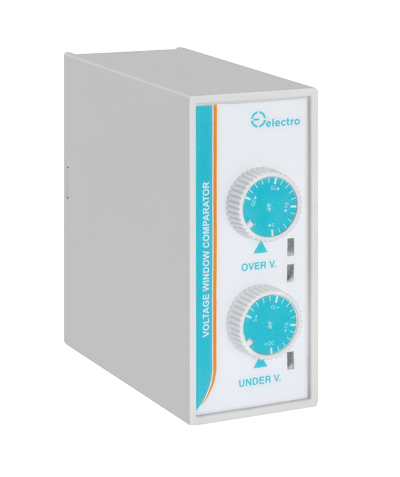

Phase monitoring plug-in relay for separate upper and lower voltage control as well as phase failure / sequence. Often used where the generated electrical power is unstable (or incorrect) in order to secure the equipment.
| Pin 5 | Phase L1 |
| Pin 6 | Phase L2 |
| Pin 7 | Phase L3 |
| Power Supply | 400V |
| Range | 320 – 400V |
| Output Specifications | SPDT |
| Rated Isolation Voltage | 6000 VAC (contact / electric) |
| Power Suppy AC Type (Galvanic) | 1110, 230, 400V, 525V ± 10% 50 / 60 Hz ± 5Hz |
| Isolation | 4kV |
| Consumption | ± 3VA |
| ±6 VA 525 V |
| Power ON Delay | ≤ 300 ms |
| Power OFF Delay | ≤ 200 ms |
| Indication for | |
| Power Supply ON | LED red |
| Supply Voltage | 525Vac, 400Vac, 230Vac, 110Vac |
|---|
