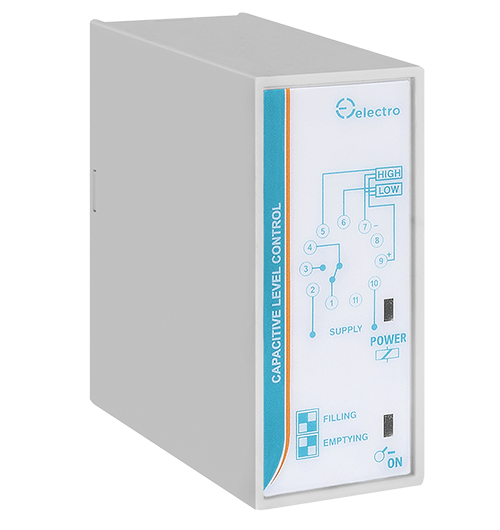

Capacitive Level Controller – LVC1

R400.51

Level control unit for any liquids or granules which can be configured for FILLING or EMPTYING. The unit can be used as a one probe system for alarm purposes or a two probe system to control HIGH and LOW levels or a reservoir. A power supply for the two NPN capacitive proximity sensors is built into the unit.



Features:



  • Fail-safe control feature
  • Rear DIP switch selectable FILLING/EMPTYING
  • Power supply for two 3wire NPN proximity switch
  • Power supply ON and Relay ON LEDs
  • Output 10 A SPDT
Clear selection
Category:

Description

Sensor Specifications

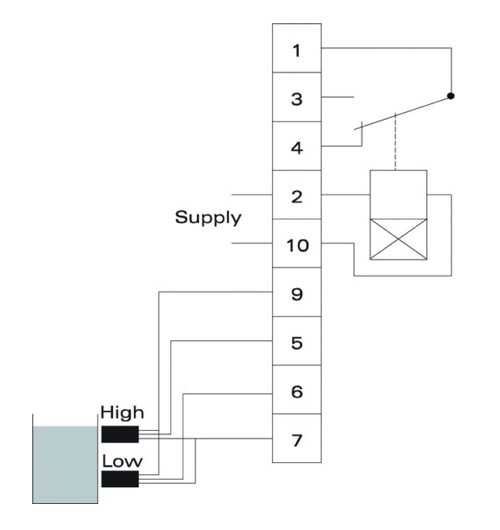

Probe Type NPN 3 wire proximity switch
Pin 7 – supply
Pin 9 + supply
Pin 6 Low level probe input
Pin 5 High level probe input
Probe Voltage 24 VDC
Short Circuit Current 25mA max
Response Time 1 sec

Output Specifications

Output Specifications SPDT
Rated Isolation Voltage 6000 VAC
Nominal Rate in AC1 (AG-Ni) 1500 VA
Rated Isolation Voltage 6000 VAC (contact / electric)
1000 VAC (contact / contact)
Nominal Rate in AC1 (Ag-Ni) 1500 VA
Rated Current 10A
Rated Voltage 250V
Mechanical Life 10×106 cycles
Electrical Life 10×103 cycles (at max load)
Operation Frequency ≤ 1800 cycles/h

Supply Specifications

Power Suppy AC Type 1110, 230, 400V, 525V ± 10%
(Galvanic) 50 Hz ± 5Hz
Isolation 4kV
Consumption ± 3VA
±6 VA 525 VA
Power Suppy DC Types 12, 24, 48 V ± 10%
(Non-galvanic)
Isolation None
Consumption ± 100mA

General Specifications

Power ON Delay ≤ 300 ms
Power OFF Delay ≤ 200 ms
Indication for
Power Supply ON LED green
Output ON LED red
Environment
Degree Of protection IP 20
Operating Temperature -10 to + 50°C
Storage Temperature -50 to + 85°C
Weight 200g

Additional information

Supply Voltage

525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc
