Description

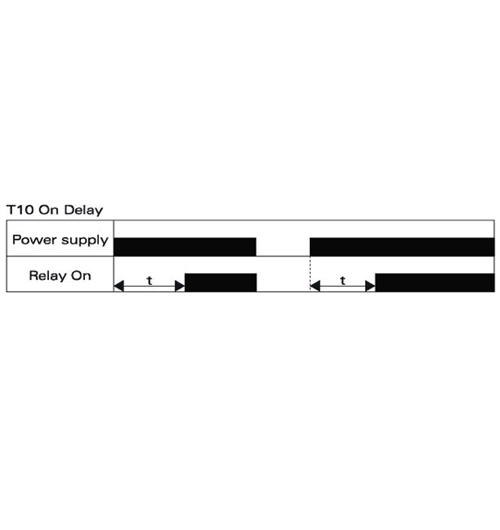

Mode of Operations
When applying supply the relay is de-energized and timing starts. Therelay only energizes after the set time is elapsed and will remain so until the supply is removed.
Back to 11 Pin Plug In Units

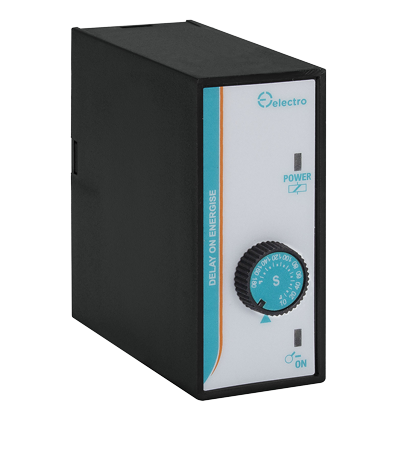

On Delay Timer – T10
R356.61
The T10 is an economical single function, single time range timer.
Features:
- Single function / single time range / single voltage
- Potentiometer adjustable time setting
- Repeatable deviation: < 1%
- Power supply ON and Relay ON LEDs
- Output 10A SPDT
Additional information
| Time Range | 360 Second, 180 Second, 60 Second, 30 Second, 10 Second, 6 Second, 6 Second, 1 Second |
|---|---|
| Supply Voltage | 525Vac, 400Vac, 230Vac, 110Vac, 48Vac/dc, 24Vac/dc, 12Vac/dc |
